HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening

MOQ: 1 por ciento
Precio: USD 100-200 per pcs
Embalaje Estándar: Caja de madera o caja del cartón
Período De Entrega: 5-8 días de trabajo
Método De Pago: L/C, T/T, Western Union, PayPal
Capacidad De Suministro: 100pcs/mes
Detalles Información
Descripción de producto
Información detallada
Lugar de origen
PORCELANA
Nombre de la marca
CHINA HUATAO
Certificación
ISO9001,CE,SGS etc.
Número de modelo
HT
Nombre del producto:
Pantalla de alambre industrial Huatao Pu-strip pacha 0.0014-0.0090 pulgadas de alambre de alambre
Palabras clave:
panel de malla de alambre, malla de alambre industrial, pantalla de ojal
Materia prima:
SS304, SS316, SS316L
Solicitud:
Evaluación del material.
Durabilidad:
Alta resistencia al desgaste
pacakge:
Caja de cartón o madera
Resaltar:

0.0014-0.0090 inch Wire Diameter Wire Screen

,

High Wear Resistance Grommet Screen

,

Material Screening Rotex Replacement Screen

Descripción de producto
HUATAO Industrial Wire Screen Black PU-Strip Grommet 0.0014-0.0090 inch Wire Diameter
HUATAO Grommet Screens stand out as premium industrial wire solutions, specifically engineered to integrate seamlessly with Rotex® separators—a key advantage for operations relying on this equipment. Crafted from top-grade stainless steel (304, 304L, 316, 316L), these screens offer exceptional resistance to corrosion, acids, and alkalis, making them a reliable choice for harsh settings like mining and chemical processing.
What truly sets them apart is their reinforced edge design: options include black PU strips for general use, transparent FDA/EC-compliant PU strips for food-safe applications, or folded wire mesh edges for high-temperature environments above 80°C. This versatility ensures they adapt to diverse operational needs, while customizable mesh counts (14-230), wire diameters (0.0014-0.0090 inch), and open areas (46%-76.4%) allow precise tailoring to specific material separation requirements.
Installation is streamlined thanks to pre-fitted grommets, reducing downtime during replacements, and their robust build extends service life by minimizing wear—ultimately boosting productivity and cutting maintenance costs.
Key Parameters
Parameter Specification
Mesh Material Stainless Steel 304, 304L, 316, 316L
Edge material Generally reinforced strips are made of PU, canvas, silica gel, etc.
Mesh type Woven mesh
Mesh count 14-230
Wire diameter 0.0014-0.0090 inch
Open area 46.0%-76.4%
Detailed Specifications
Item Mesh Size Wire Size (in.) Microns Open Area %
1 14 0.009 1580 76.4
2 16 0.009 1360 73.3
3 18 0.009 1180 70.2
41 230 0.0014 74 46
Edge Type Options
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 0
Black PU-Strip Grommet Screen
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 1
Transparent PU-Strip Grommet Screen

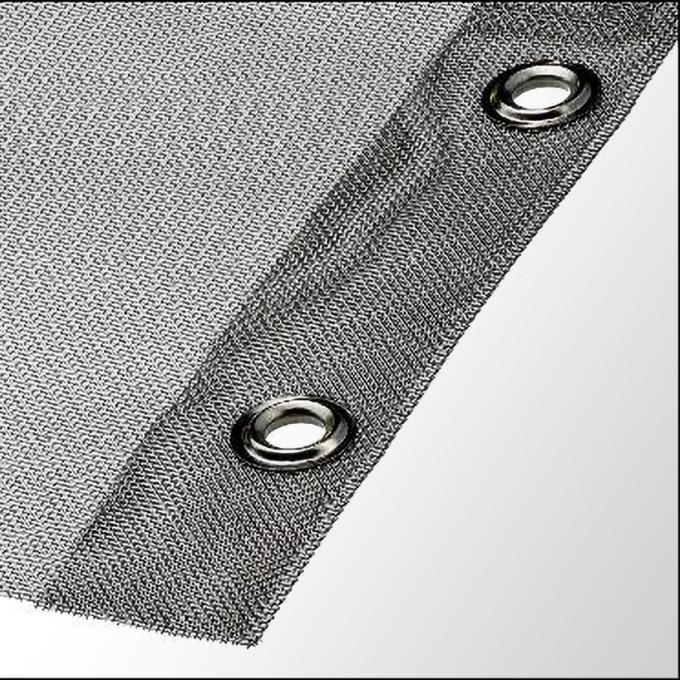

180° Folded Edge Grommet Screen
180° Folded Edge Grommet Screen
Production Process
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 3
Packaging & Logistics
Wooden box package for secure shipping and handling.
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 4
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 5
Applications
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 6
HUATAO Hot-Selling Polyurethane Products
Product Type Product Type
Urethane Screen Tufflex Screen
Polyurethane Dewatering Screen Mesh WS 85 Modular Screen
Polyurethane Screen Panels Rotex Replacement Screens
Rubber Screen Panel Vibrating Screen Mesh
Self cleaning Wire Mesh Shale Shaker Screen
HUATAO Industrial Wire Screen with 0.0014-0.0090 inch Wire Diameter and High Wear Resistance for Material Screening 7
